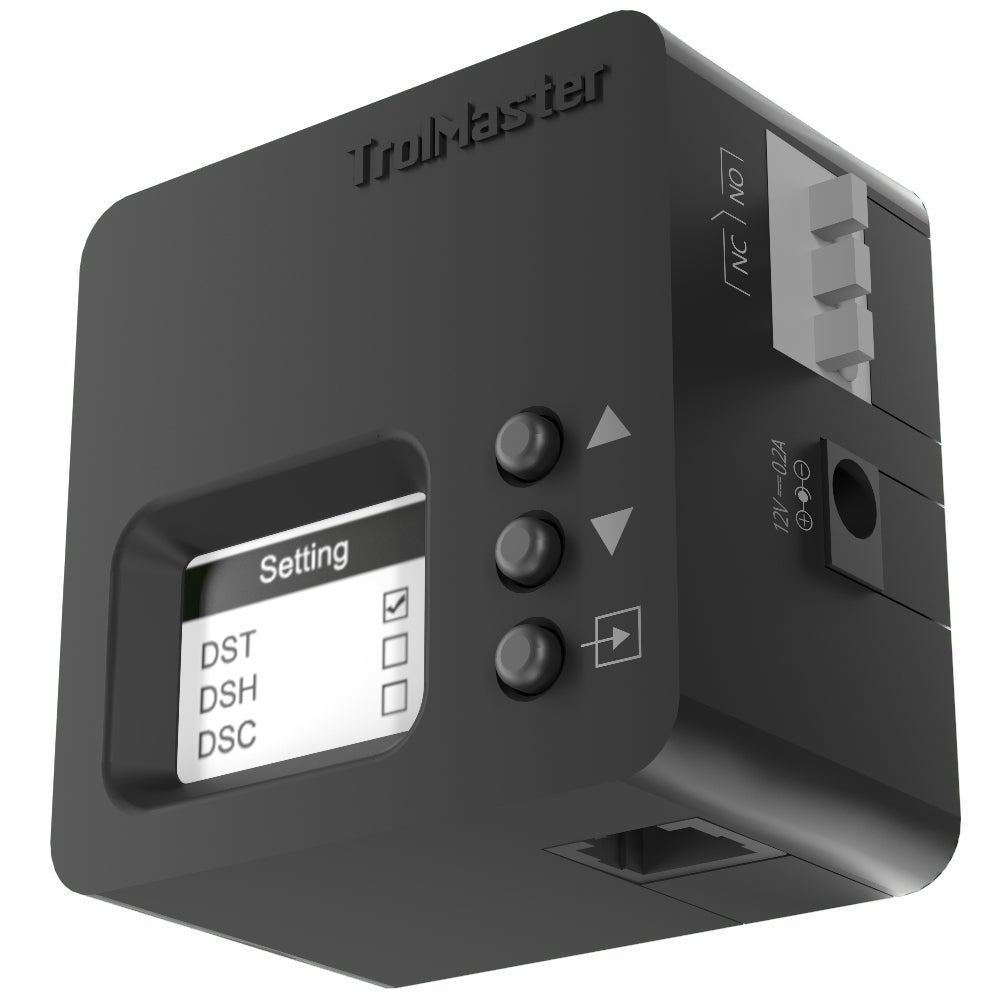

TrolMaster Hydro-X Dry Contact Station - DSD-1

TrolMaster Hydro-X Dry Contact Station - DSD-1 is a dry contact station for controlling equipment that needs dry contact closure, using the Hydro-X environmental control system or the Aqua-X irrigation control system.

This dry-contact module provides a simple relay output for devices that are activated by contact closure rather than a powered outlet. It supports both normally open and normally closed connections, giving you flexible control for a wide range of equipment types. The DSD-1 can be assigned for multiple purposes, making it easy to keep device switching organized inside your controller ecosystem.

Within a Hydro-X setup, the DSD-1 is used to control many kinds of devices, including lighting contactors, light deprivation curtains, pump contactors, temperature devices, humidity devices, and co2 devices. That broad support makes it a practical fit when your room has equipment that expects a dry contact signal and you want it managed from one centralized platform.

Day-to-day operation stays straightforward. An onboard lcd display is designed for easy operation, and the module is built for plug and play integration with Hydro-X. When you need quick control at the module, a manual override function is available by pressing and holding the top button to switch the station on or off.

Electrical specifications include an input voltage range of 100–240 vac at 50/60 hz, with output current rated at 6a. The dry contact output is rated for 30 vdc or 250 vac at 6a, supporting dependable switching for compatible dry-contact equipment in controlled environments.

Indoor.
