AC Infinity

AC Infinity Airplate T8

Order Within

—

Province

Est. Delivery

—

$0.00

Ontario

$125.00

Canada

$149.99

Qualifies for Free Shipping Promotion

Description

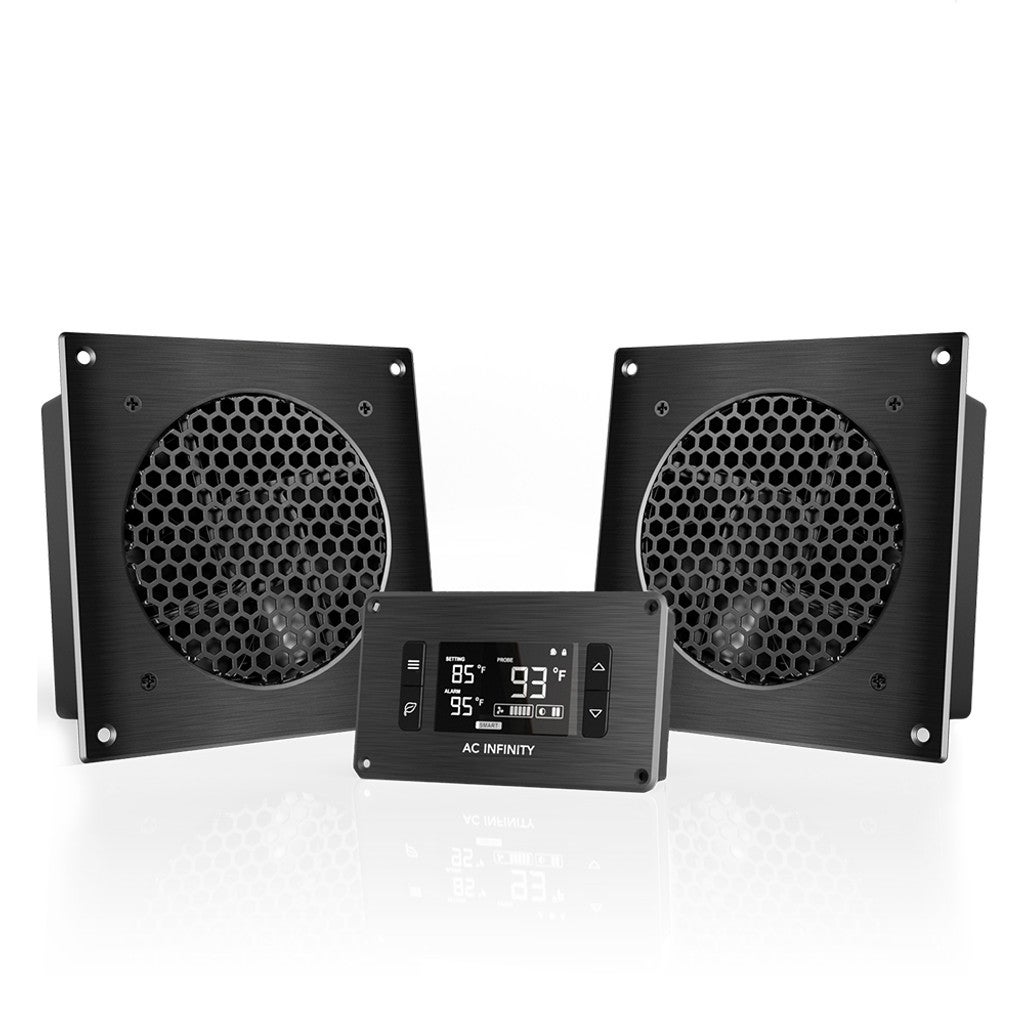

The ultra-quiet dual-fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. This kit includes two single fan units, one exhaust and one intake. plus a thermal controller. Each fan uses a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet.

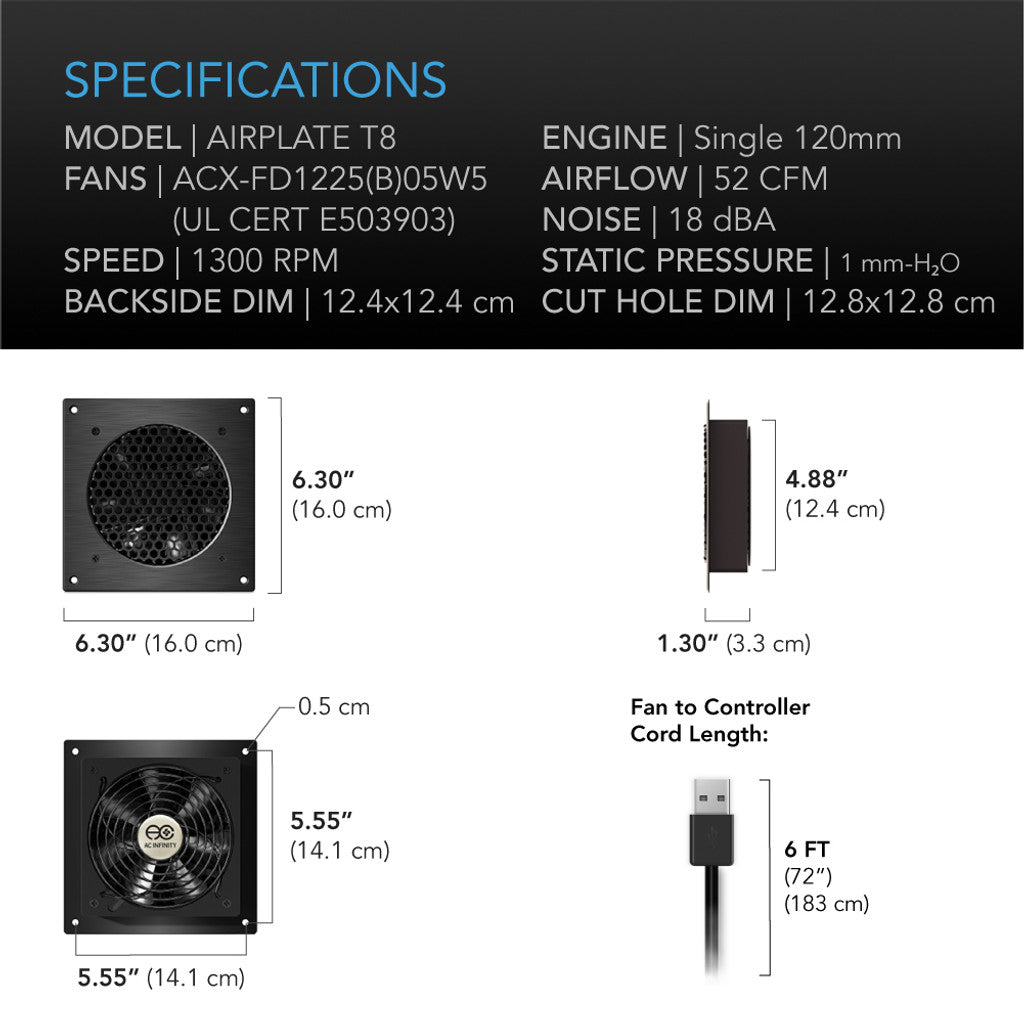

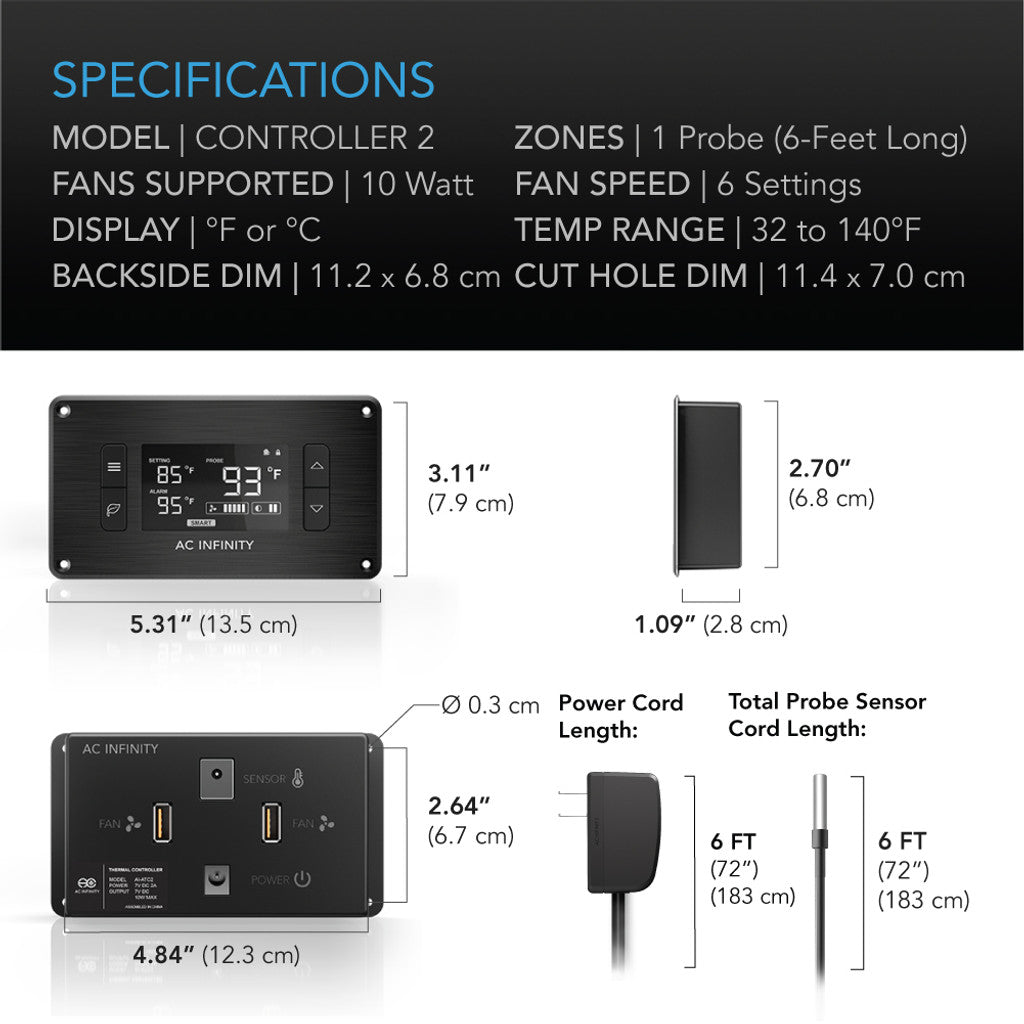

Specifications

Length: 6.30 Inch; Width: 6.30 Inch; Height: 1.30 Inch; Backside Width: 4.88 Inch; Backside Length: 4.88 Inch; Cord Length: 6 Feet; Controller Length: 5.20 Inch; Controller Height: 3.11 Inch; Controller Width: 1.10 Inch; Controller Backside Length: 4.41 Inch; Controller Backside Width: 2.76 Inch; Display Size: 2.25 x 1.25 Inch; Display: Digital; Control Settings: 6; Sensor Probe Length: 72 Inch; Color: Brushed Black; Noise: 19 dBA; Static Pressure: 1 mm-H2O; Operating Voltage: 3 - 7 DC Volts; Consumption Wattage: 3.3 Watt; Consumption Amperage: 0.66 A; Total Airflow: 104 CFM; Input Voltage: 100 - 240 AC Volts; Operating Humidity: 35 - 85%; Operating Temperature: -17 - 70 °C; Bearings: Dual Ball Bearing; Rated Life: 67,000 Hours; Inside The Box:; Fans: 2; Controllers: 1; Power Cords: 1.

Warnings & Safety

Electrical Safety

Use this product only as directed in the manufacturer instructions. Connect only to a suitable outlet and correct voltage. Do not use if the cord, plug, housing, or adapter is damaged.

Water & Moisture Safety

Keep electrical parts, plugs, outlets, and controls away from water and moisture unless the product is specifically rated for wet or damp locations. Do not handle plugs or electrical parts with wet hands.

Power Load Safety

Do not overload outlets, timers, power bars, extension cords, or circuits. Use only properly rated accessories and follow the manufacturer’s wattage, amperage, and installation limits.

Ventilation & Heat Safety

Allow proper ventilation during use. Do not cover the product or block vents, fans, drivers, adapters, or heat sinks. Keep away from flammable materials and follow clearance requirements in the manual.

Cleaning & Service Safety

Unplug the product before cleaning, moving, installing, or servicing. Do not open, modify, or repair electrical components unless the manufacturer instructions specifically allow it.

Label & Manufacturer Directions

Always follow the official product label, package directions, and manufacturer safety information. Check the manufacturer website or official product documentation for the most complete and current usage, safety, storage, and disposal details. This notice is general guidance and does not replace the product label.

Specifications

Length	6.30 Inch
Width	6.30 Inch
Height	1.30 Inch
Backside Width	4.88 Inch
Backside Length	4.88 Inch
Cord Length	6Feet
Controller Length	5.20 Inch
Controller Height	3.11 Inch
Controller Width	1.10 Inch
Controller Backside Length	4.41 Inch
Controller Backside Width	2.76 Inch
Display Size	2.25 x 1.25 Inch
Display	Digital
Control Settings	6
Sensor Probe Length	72 Inch
Color	Brushed Black
Noise	19 dBA
Static Pressure	1 mm-H2O
Operating Voltage	3 - 7 DC Volts
Consumption Wattage	3.3 Watt
Consumption Amperage	0.66 A
Total Airflow	104 CFM
Input Voltage	100 - 240 AC Volts
Operating Humidity	35 - 85%
Operating Temperature	-17 - 70 °C
Bearings	Dual Ball Bearing
Rated Life	67,000 Hours

Inside The Box
Fans	2
Controllers	1
Power Cords	1
