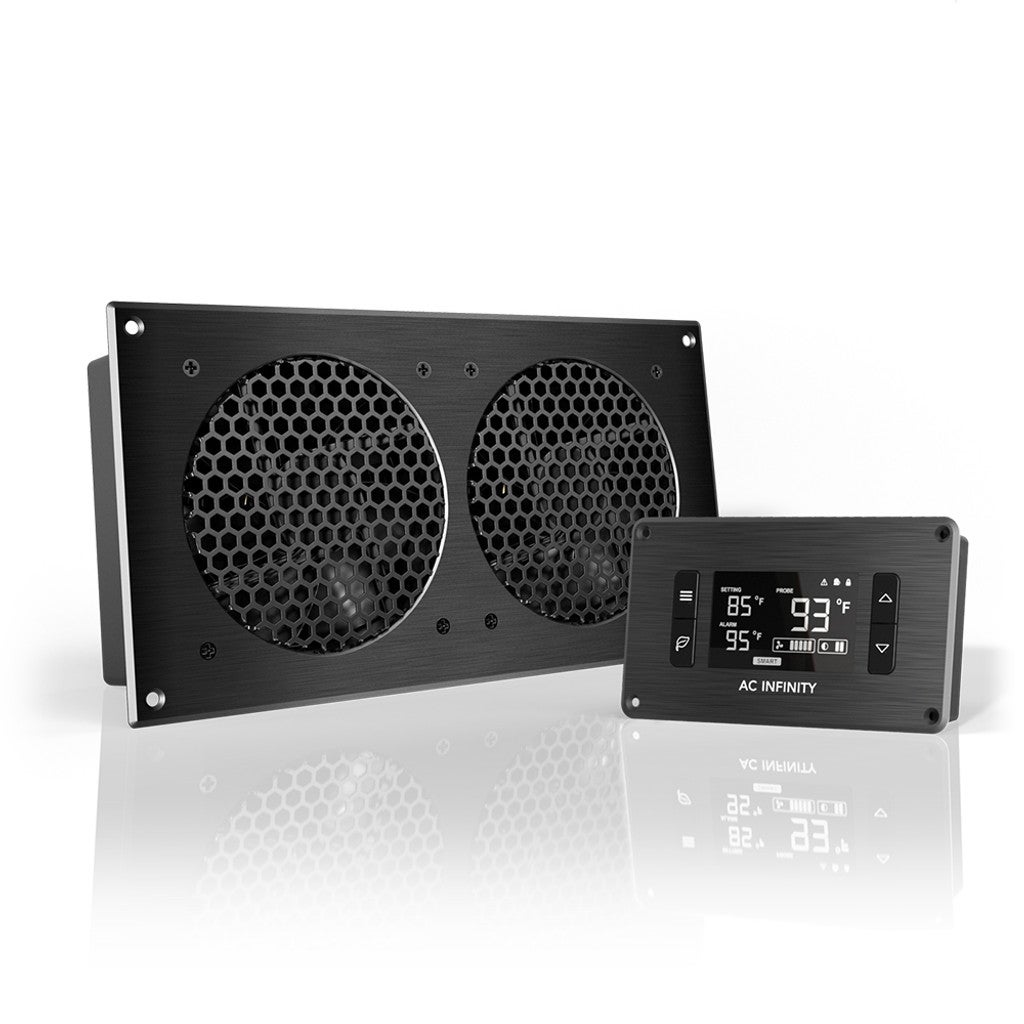

AC Infinity Airplate T7

Out of stock at your selected pickup location? If your order is being picked up in Newmarket or Barrie, we’ll automatically transfer available inventory between those two stores, so everything is handled for you.

Province:

Order Within: —

Estimated Delivery: —

Free Shipping (Canada): —

Free Shipping (Ontario): —

Qualifies for Free Shipping Promotion

Description

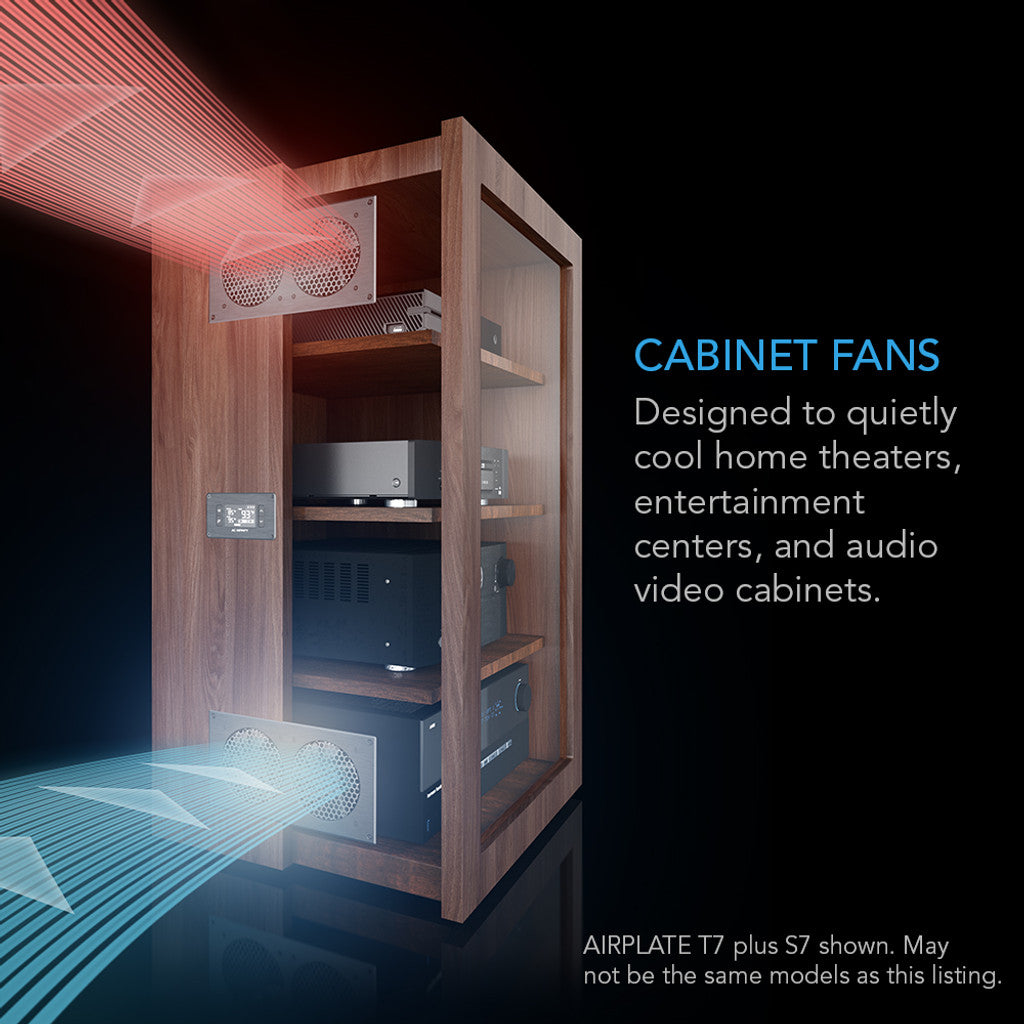

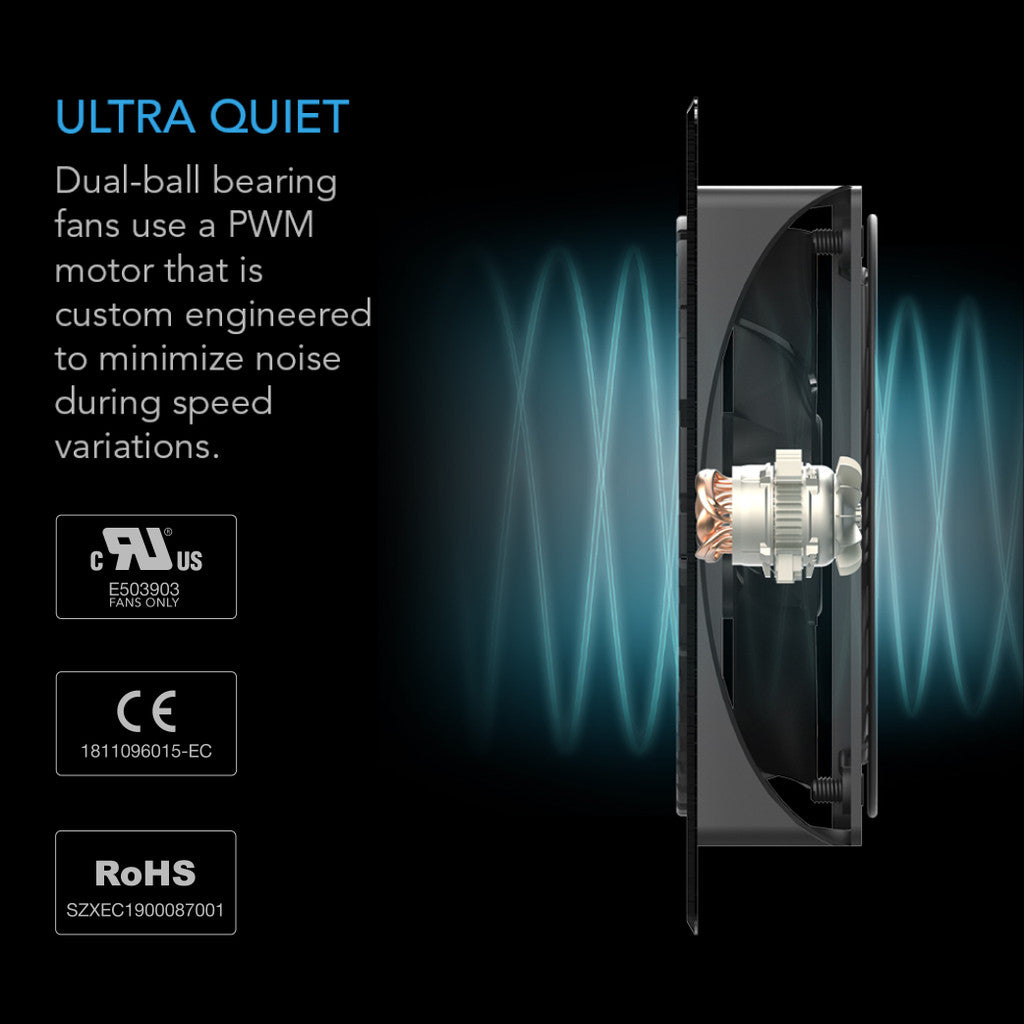

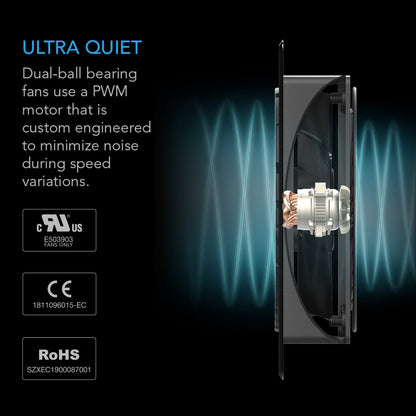

The ultra-quiet fan system is designed to cool home theaters, entertainment centers, and audio video cabinets. Included fans use a custom motor engineered to minimize noise during speed variations and are certified by CE and RoHS. Contains AC Infinity axial fans ACX-FD1225(B)05W5 which meet UL-507 standards for safety under Underwriters Laboratories certificate E503903. Containing dual ball bearings rated at 67,000 hours, the unit can be mounted in any direction. Features a CNC machined aluminum frame with a modern brushed black finish. Fans are set to exhaust air out the frame but this can be reversed to intake air using a screw driver. Includes all necessary hardware to easily mount the unit onto a cabinet and power it through a standard wall outlet

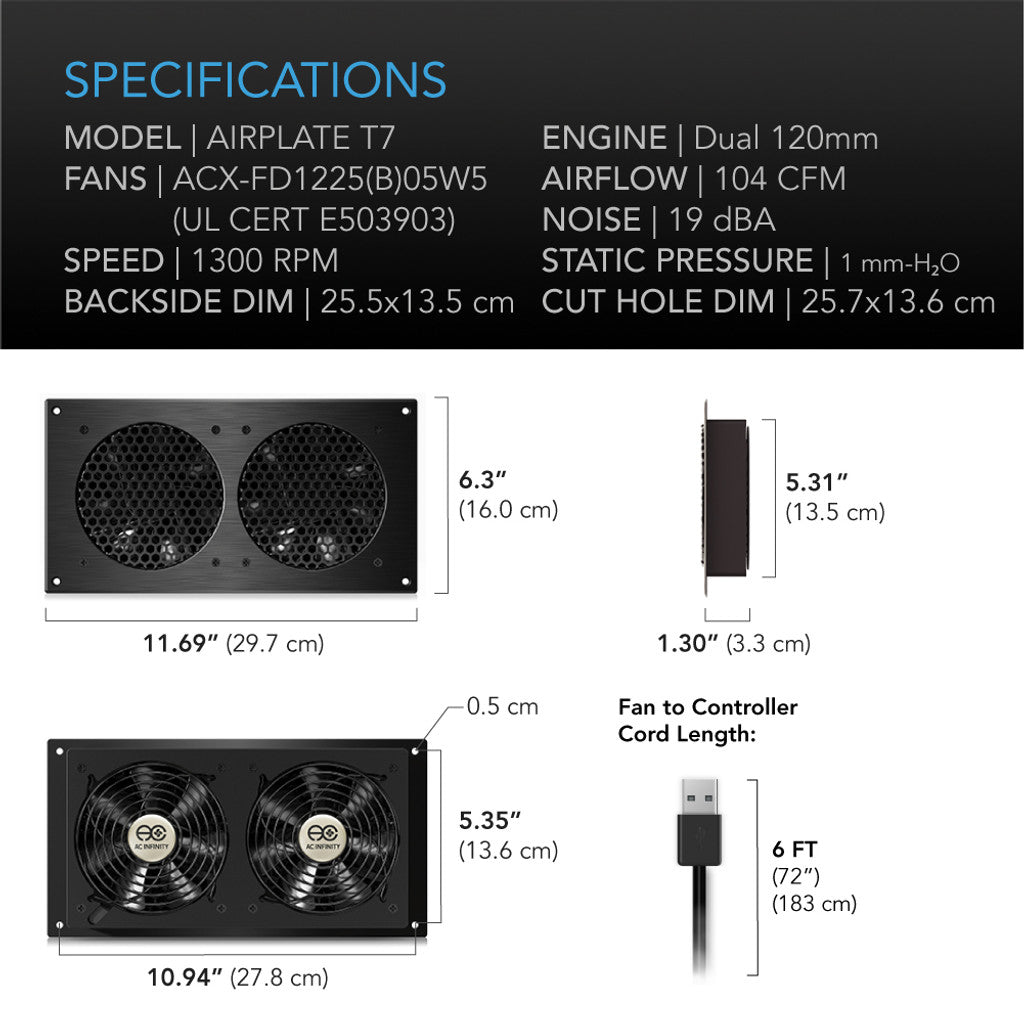

Specifications

Length	11.69 Inch
Width	6.30 Inch
Height	1.30 Inch
Backside Length	10.04 Inch
Backside Width	5.31 Inch
Cord Length	6Feet

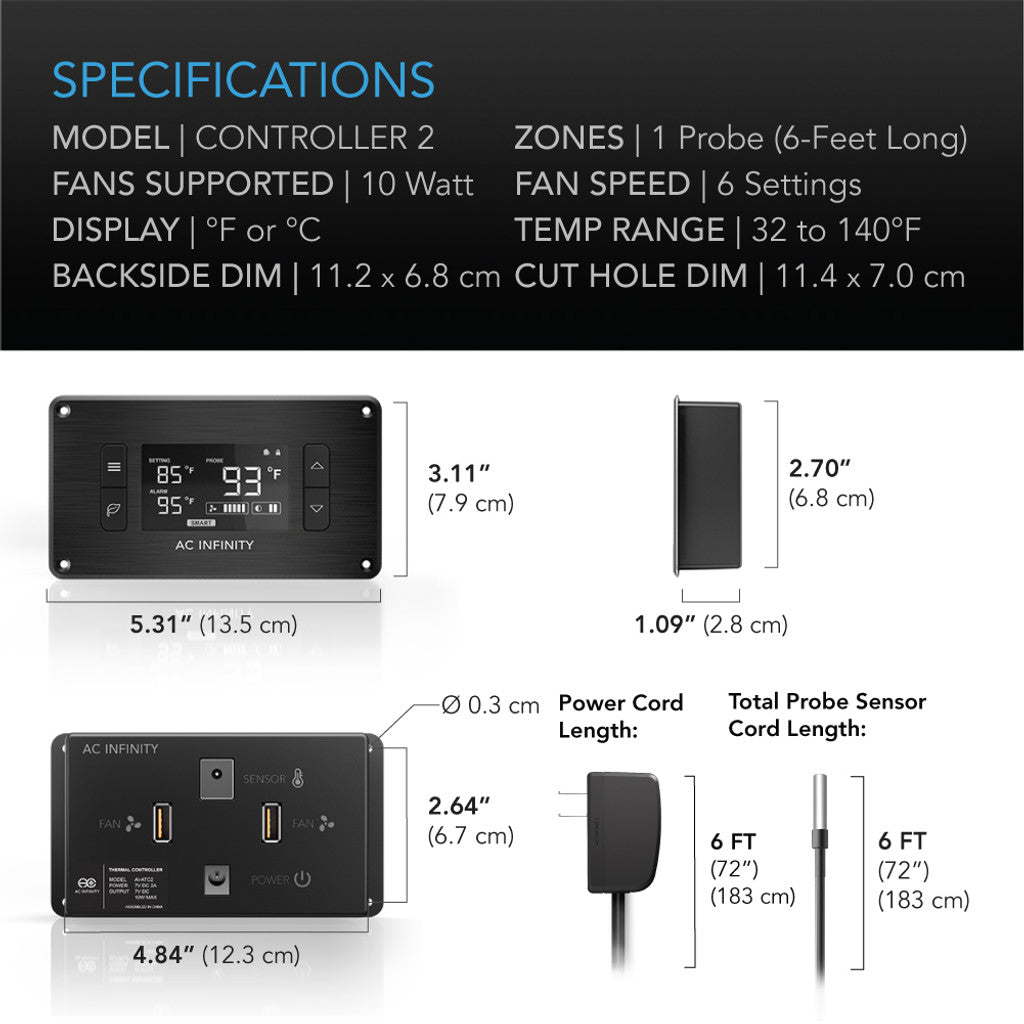

Controller Length	5.20 Inch
Controller Height	3.11 Inch
Controller Width	1.10 Inch
Controller Backside Length	4.41 Inch
Controller Backside Width	2.76 Inch
Display Size	2.25 x 1.25 Inch

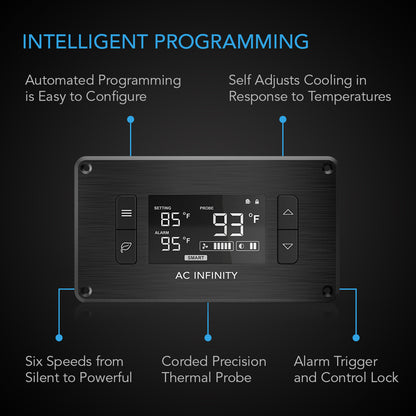

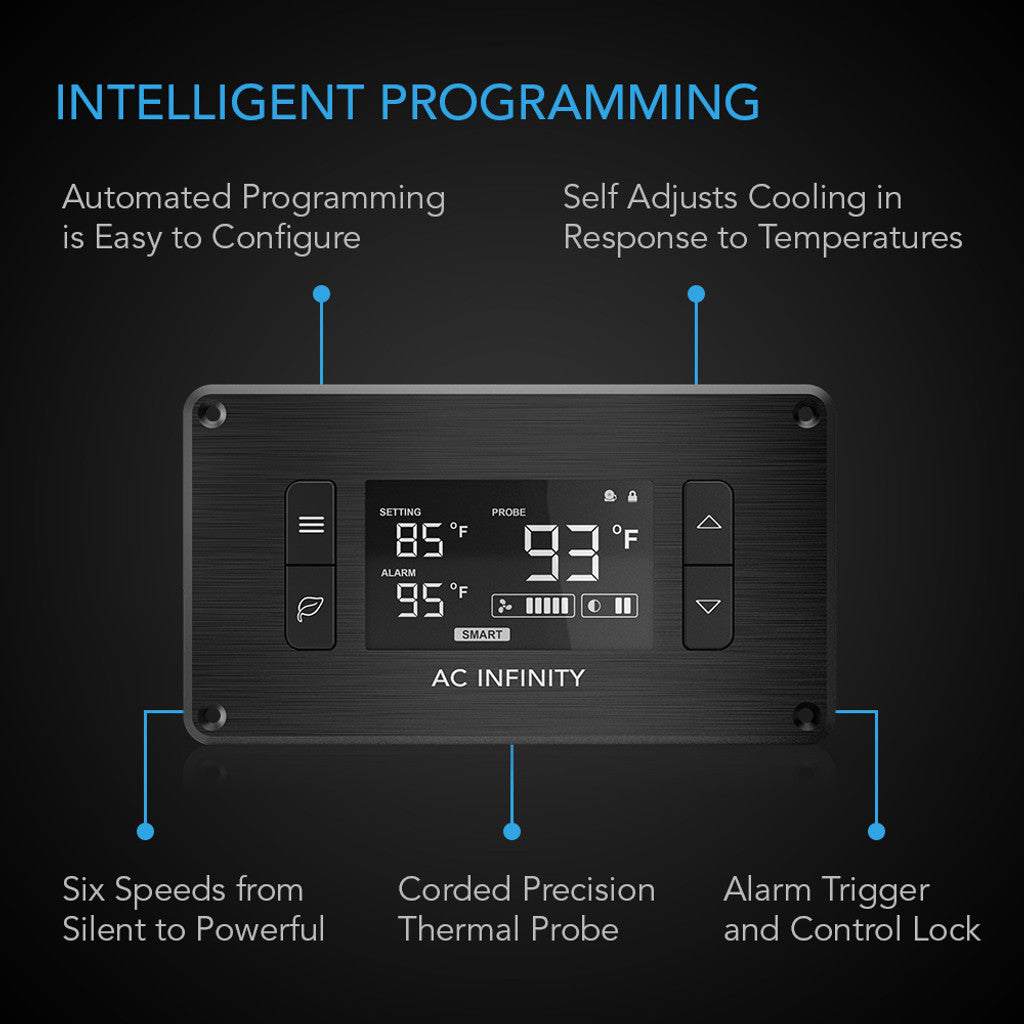

Display	Digital
Control Settings	6
Sensor Probe Length	72 Inch
Total Airflow	104 CFM
Noise	19 dBA
Static Pressure	1 mm-H2O
Operating Voltage	3 - 7 DC Volts
Consumption Wattage	3.3 Watt
Consumption Amperage	0.66 A
Input Voltage	100 - 240 AC Volts
Operating Humidity	35 - 85%
Operating Temperature	-17 - 70 °C
Bearings	Dual Ball Bearing
Rated Life	67,000 Hours

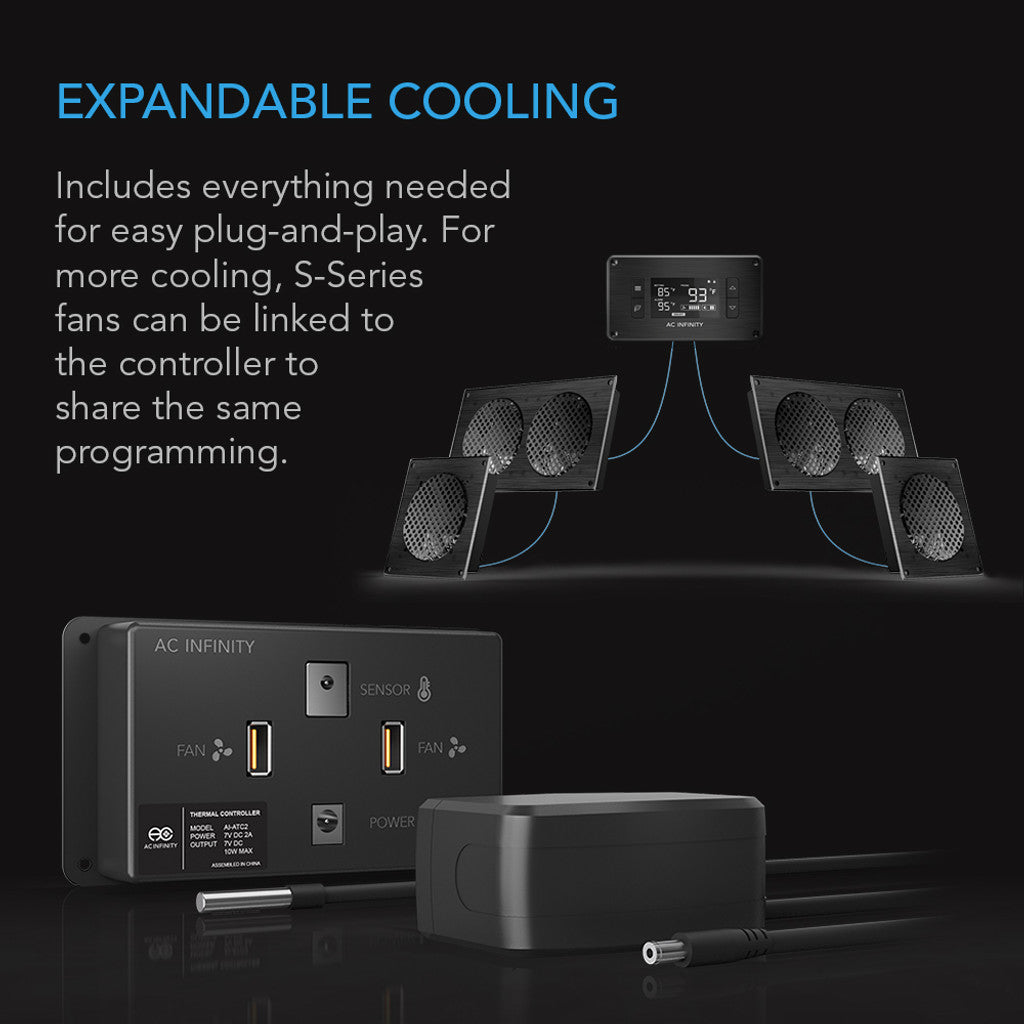

Inside The Box
Fans	1
Controllers	1
Power Cords	1
